VISIO
Next generation high bay luminaires
High bay lighting has evolved.
The Visio family is the evolution of our highly successful high bay range of luminaires. By utilising over 85 years of experience in illuminating industrial environments, and listening to our customers’ needs, we have designed the Visio, Visio Pro and Visio Sport to tackle the latest industrial lighting challenges. With environmental impact and material usage key considerations in the new design, the luminaires are as compact as possible whilst still delivering excellent photometric performance, very high light outputs, and long reliable lifetimes.
As end users become increasingly concerned with their Environmental, Social and Corporate Governance (ESG) obligations, Visio luminaires, combined with our revolutionary SmartScan wireless lighting management system, meet the needs of not just today’s industrial lighting challenges, but also tomorrow’s.
Introducing the Visio family.
Visio exemplifies the supreme efficiency expected of Thorlux high bay luminaires, providing up to 58,485 lumens and an efficiency of up to 179 luminaire lumens per circuit watt.
With four light distribution and seven wattage options, there is a Visio for every mounting height and light level. Custom high performance optics ensure that light is delivered where it is needed for either open area or narrow racking applications.

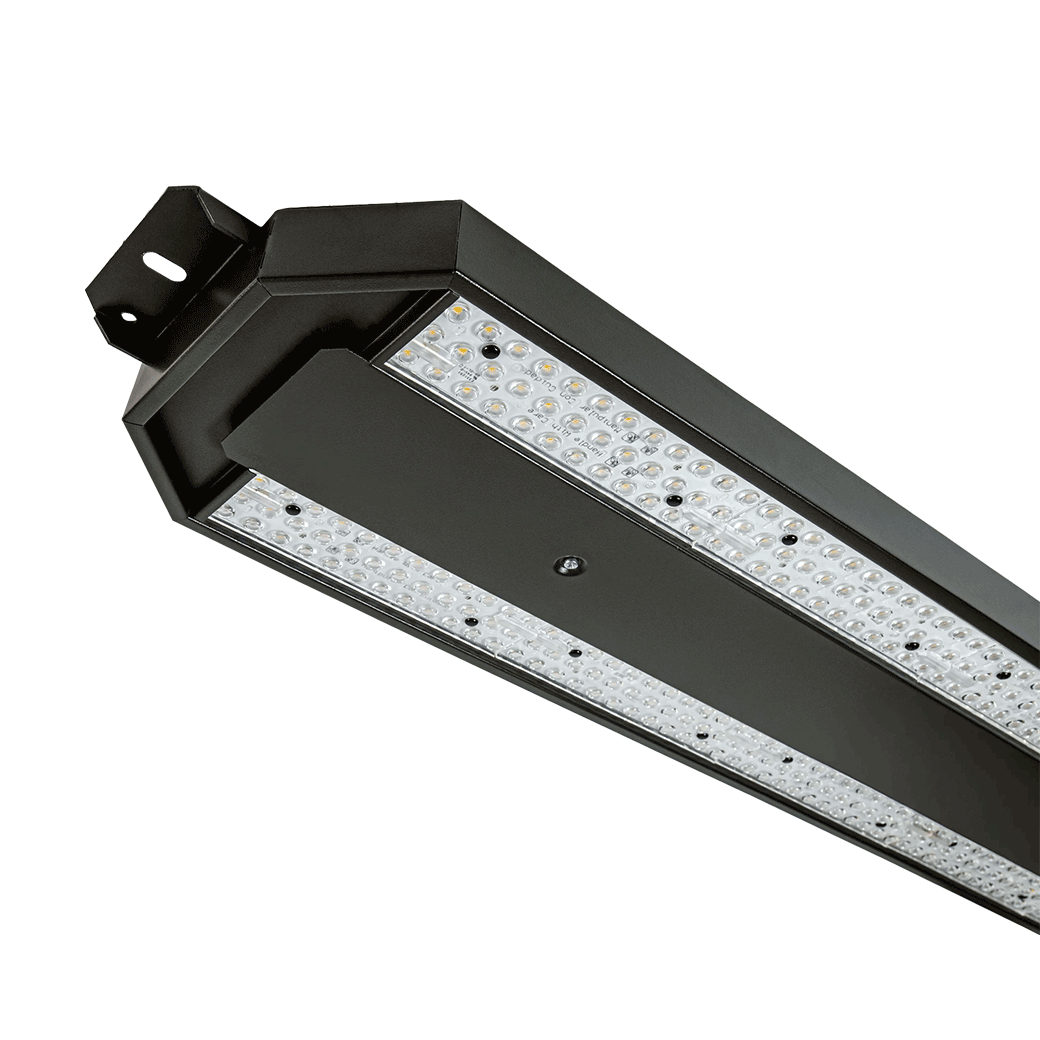

Visio
The Visio is designed for a wide variety of applications. Its versatile mounting bracket provides the option of either surface, suspended or busbar mounting. The high performance optics offer superb efficiency in wattages up to 364 W delivering 58,485 lumens.
Sensor type:
High Level Smart Sensor (Up to 18 m)
- Warehouse and logistics
-
Manufacturing
-
Retail
-
Airports
-
Light industry
Visio PRO
The Visio Pro is designed for arduous environments with its tough extruded aluminium body and IK10 rated polycarbonate cover. The IP66 rating makes it ideal for wet areas or where regular cleaning takes place. High performance optics deliver up to 55,405 lumens.
Sensor type:
High Level Smart Sensor (Up to 18 m)
- Heavy Industry
- Cold Stores
- Food processing
-
Maintenance Depots

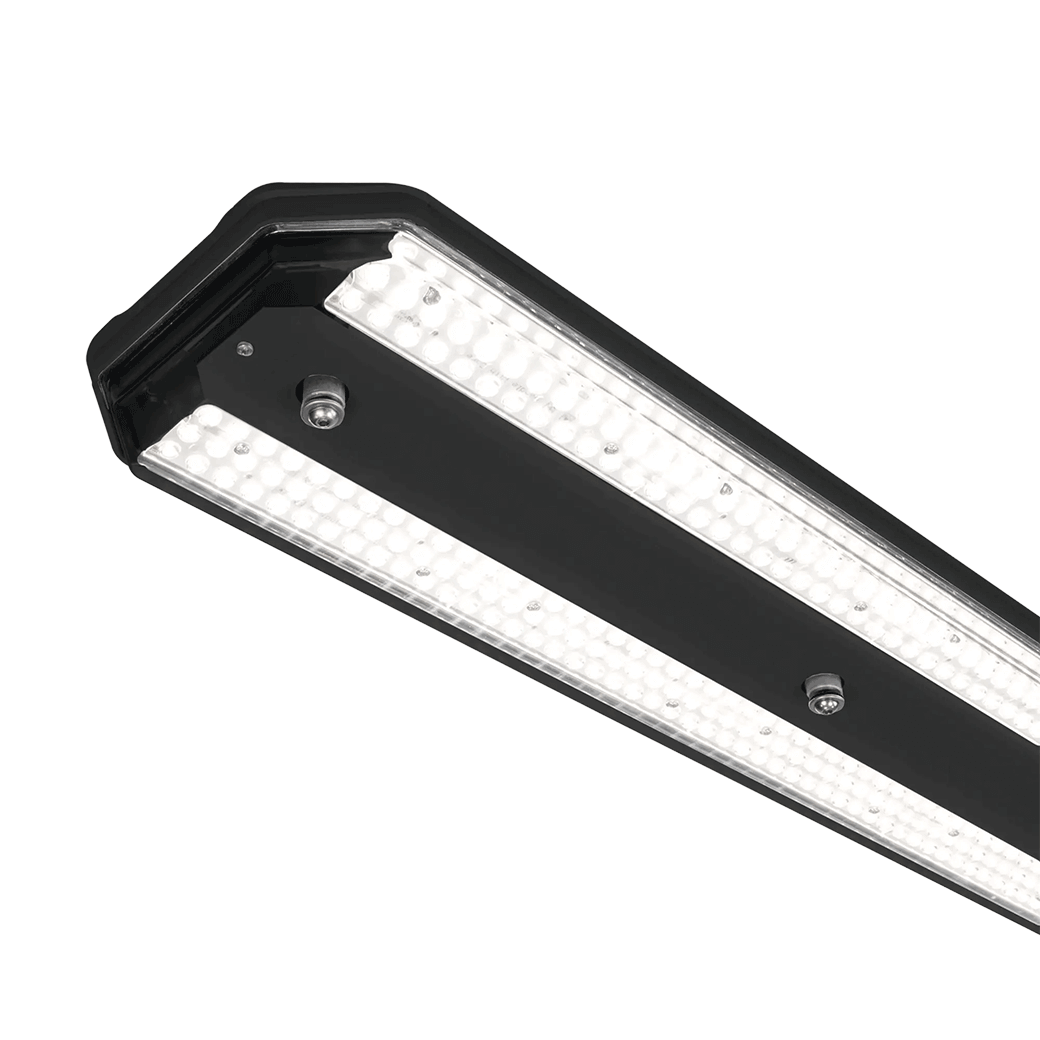

Visio SPORT
The Visio Sport’s high impact rating and glare control make it ideal for use in sports halls. Visio Sport complies with the demanding ball impact requirements from DIN EN 18032 Part 3 and DIN VDE 0710 Part 13 German sports hall standards.
Sensor type:
High Level Smart Sensor (Up to 18 m)
- Sports Halls
-
Leisure centres
A Visio for...
Retail •
Food processing •
Airports •
Warehouse and logistics •
Manufacturing •
Exhibition centres •
Rail •
Industry •
Leisure centres •
Power stations •
Cold stores •
Maintenance depots
& More
Visio family comparison
Visio |
Visio PRO |
Visio SPORT |
|
---|---|---|---|
IP Ratings | IP40 | IP66 | IP66 (IP54 Smart version) |
IK Ratings | IK07 | IK10 (IK09 Smart version) | IK10 (IK09 Smart version) |
Ball impact resistant (DIN EN 18032 Part 3 and DIN VDE 0710 Part 13) | - | - | |
Size options | 800 mm / 1,400 mm / 2,000 mm | 800 mm / 1,400 mm / 2,000 mm | 800 mm / 1,400 mm |
Wattage options | 113 W / 122 W / 141 W / 186 W / 228 W / 268 W / 364 W | 113 W / 122 W / 141 W / 186 W / 228 W / 268 W / 364 W | 113 W / 141 W / 228 W |
Operating temperatures | Min. -20°C / Max. +55°C | Min. -20°C / Max. +55°C | Min. -20°C / Max. +55°C |
Sensor type | High Level Smart Sensor | High Level Smart Sensor | Smart Sensor |
Maximum sensing height (Smart versions) | Up to 18 m | Up to 18 m | Up to 8 m |
Mounting Options | Surface / Suspended / Trunking | Surface / Suspended / Trunking | Surface / Suspended / Trunking |
Integral emergency | |||
Optical distributions | Area broad / Area medium / Rack medium / Rack narrow | Area broad / Area medium / Rack medium / Rack narrow | Area broad |
Efficiency | Up to 179.7 LL/CW | Up to 159.6 LL/CW | Up to 154.8 LL/CW |

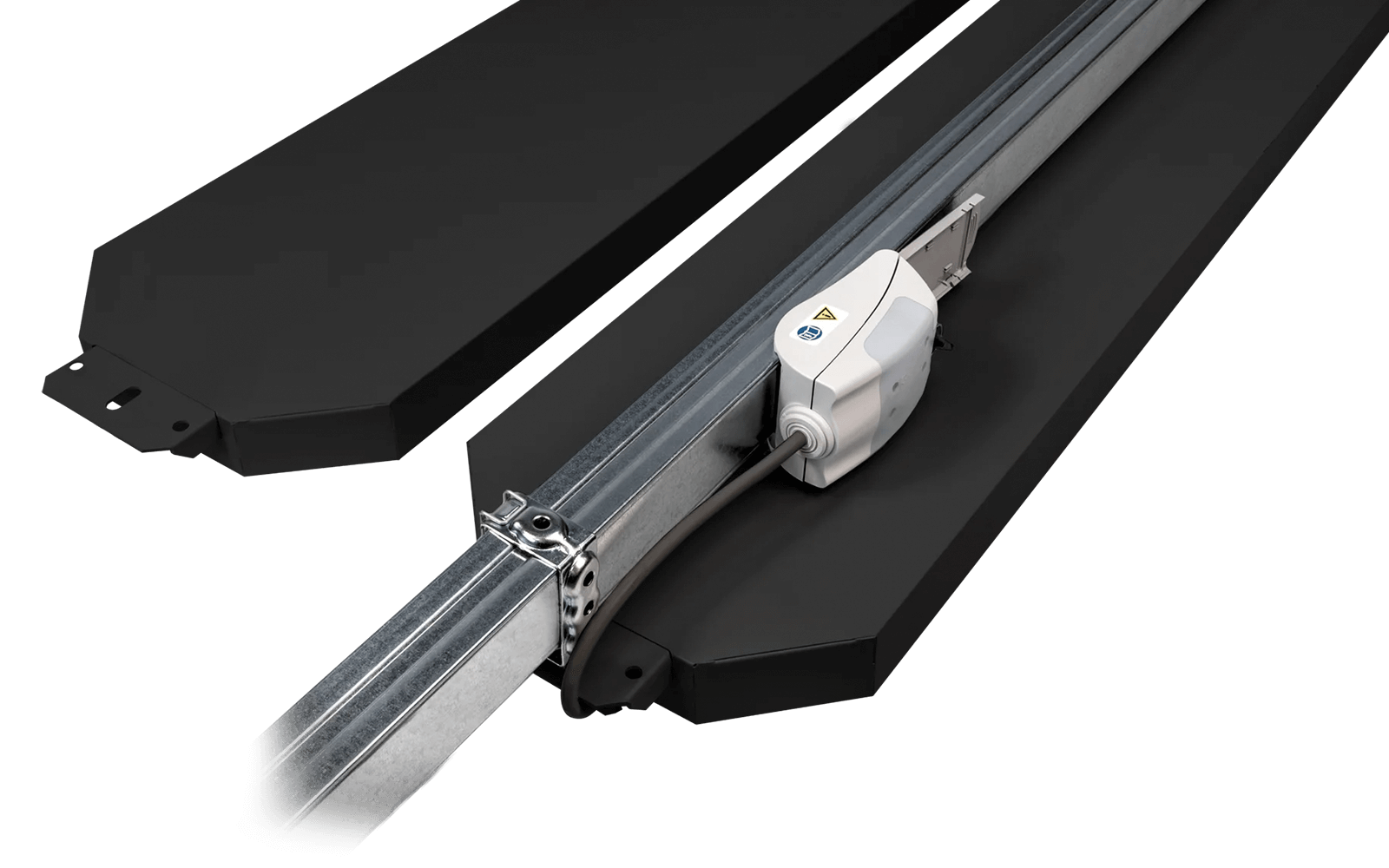

Installation made simple.
Flexible mounting options.
All luminaires in the Visio family feature external mounting brackets and a fitted 2 m flying lead, allowing installation without the need to open the body.
Visio
The Visio has mounting brackets at each end of the luminaire with a 9x20 mm slot for direct / surface mount or busbar bracket attachment and two 7 mm diameter fixings for optional suspension cables.
Visio PRO &
Visio SPORT

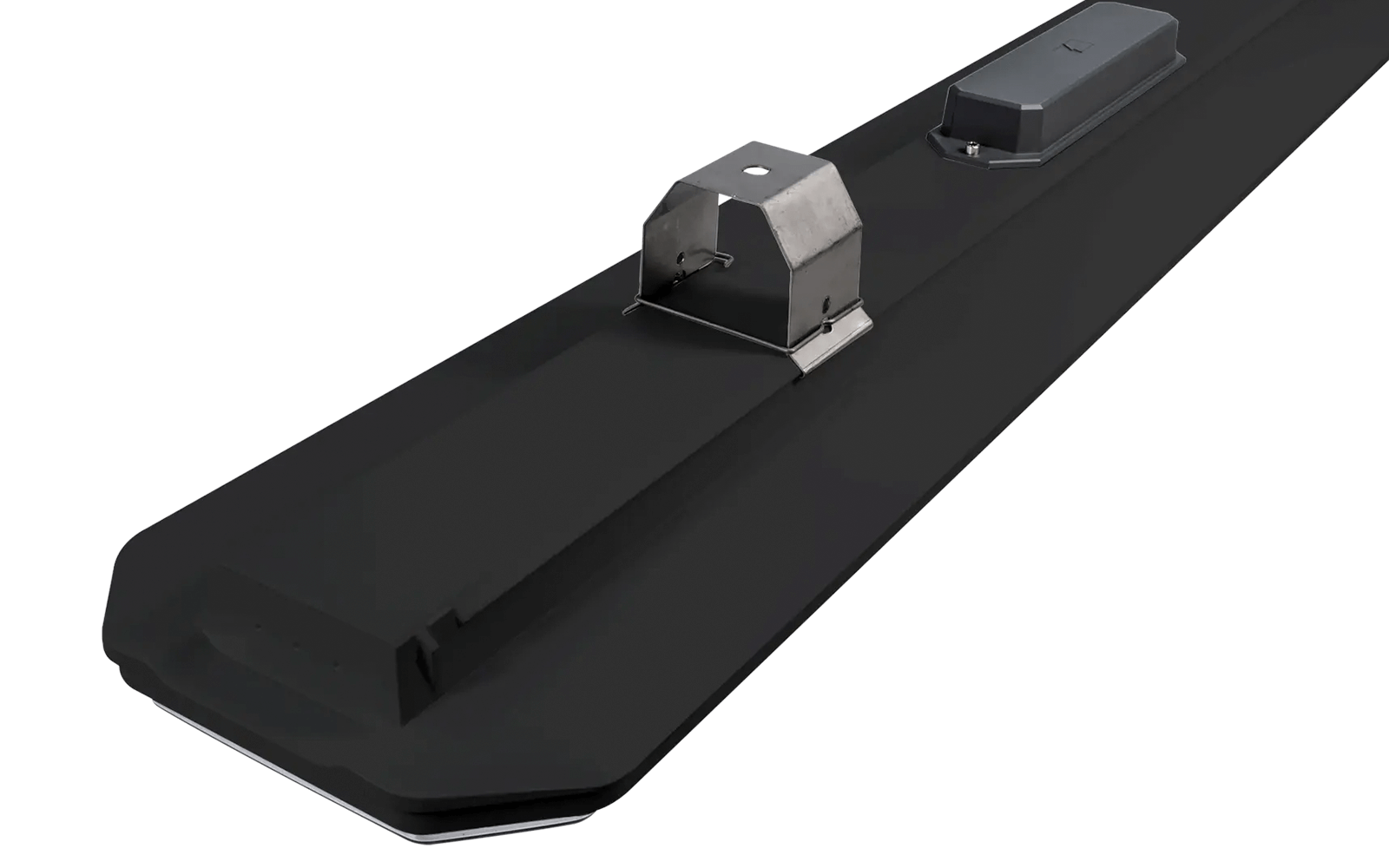

The Visio Pro and Visio Sport have been designed for ease of installation. Once the brackets are secured in position the luminaire is simply clipped in.
Installation in 3 simple steps
Install mounting brackets
Clip luminaire into bracket
Connect to supply
Locking kit supplied on Visio Sport versions
Light when you need it most.
Easy to maintain emergency options.
The design of the Visio allows simple access to the integral batteries.
All emergency versions deliver a high lumen output when in emergency operation to ensure the correct provision using the minimum number of luminaires.
Visio

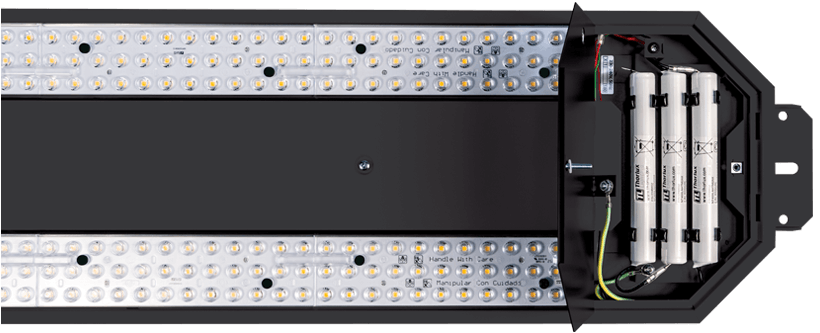

The Visio has a quick access battery compartment at the end of the luminaire, ensuring batteries are kept cool and operating at an optimum temperature to avoid premature failure. Once the batteries reach the end of their usable life they are accessed by loosening a single screw on the lid, allowing quick and simple replacement.

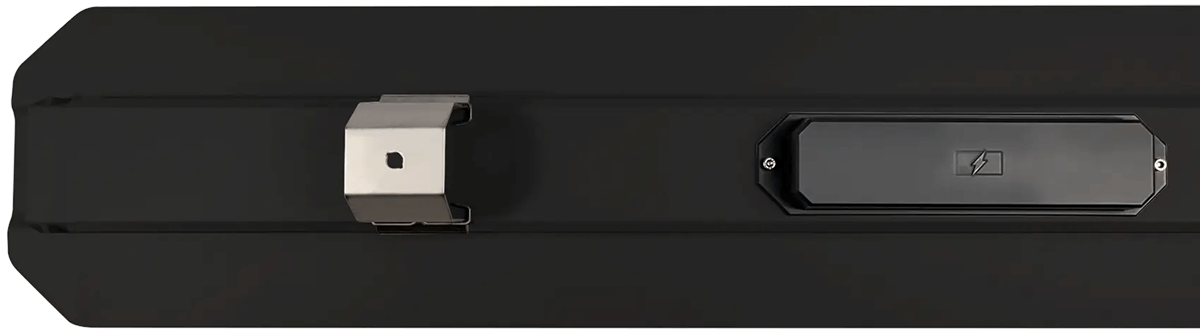

Visio PRO & Visio SPORT
The Visio Pro and Visio Sport feature an external battery pack on the rear of the body ensuring the batteries operate at the optimum temperature. Access for maintenance is quick and easy via two captive fixing screws without the need to remove the luminaire.
Designed to thrive in tough environments.
Three levels of protection.
Whether the application is general manufacturing, heavy industry or a high impact sport environment the Visio range offers the perfect solution.

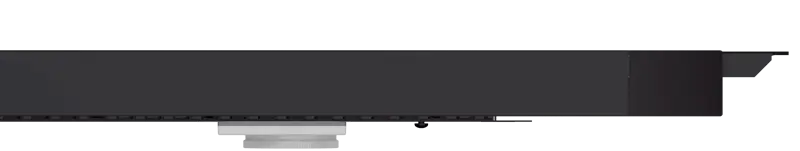

Visio
IP40 | IK07
Visio is designed for use in the majority of high bay applications such as manufacturing areas or warehouses where moisture, dust and impact are not a concern.

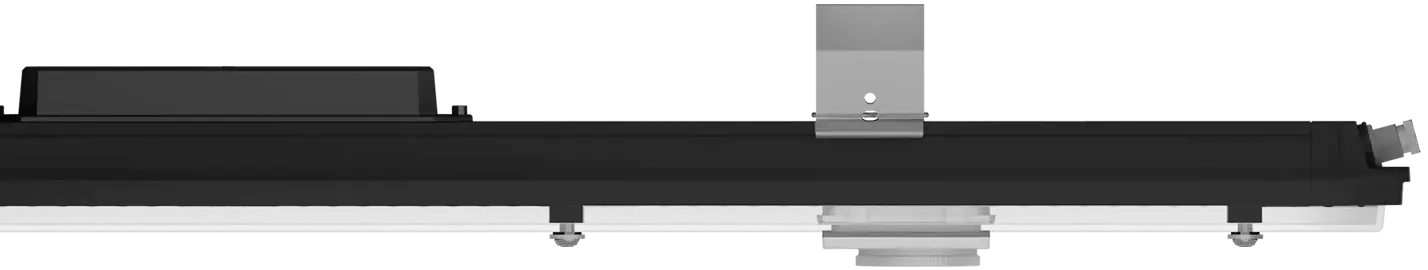

Visio PRO
IP66 | IK10 | IK09 SMART VERSION
The Visio Pro is designed for tough environments where dust and moisture are present, making it most suited to heavy industrial applications; from dirty production areas to facilities that require regular clean down, Visio Pro thrives in them all.
With its extruded aluminium body and high pressure die-cast end caps, a full polyester powder coat finish, 4 mm thick UV stabilised polycarbonate cover and stainless steel mounting brackets, the Visio Pro is both impact resistant and durable.

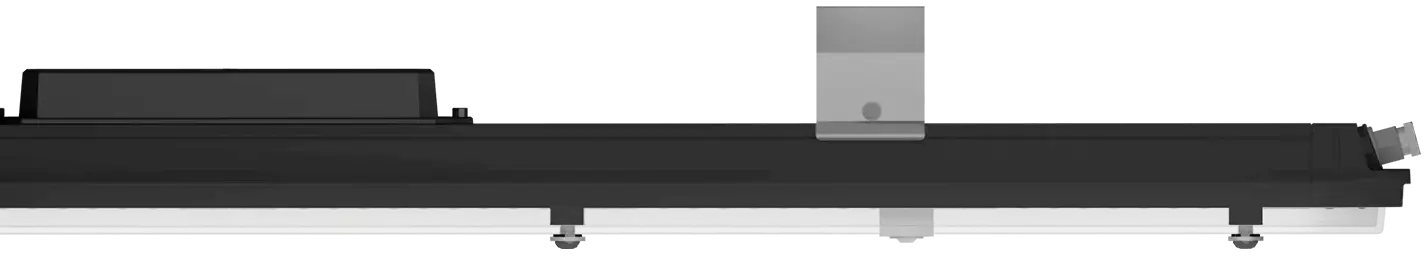

Visio SPORT
IP66 | IP54 SMART VERSION | IK10 | IK09 SMART VERSION | Ball Impact Resistant
The Visio Sport retains all of the resilient properties of the Visio Pro with the added benefit of ball impact resistance. Designed for use in indoor sports facilities, the Visio Sport is rated IK10 and compliant with the demanding ball impact testing requirements from DIN EN 18032 Part 3 and DIN VDE 0710 Part 13.
It’s what’s on the inside that counts.

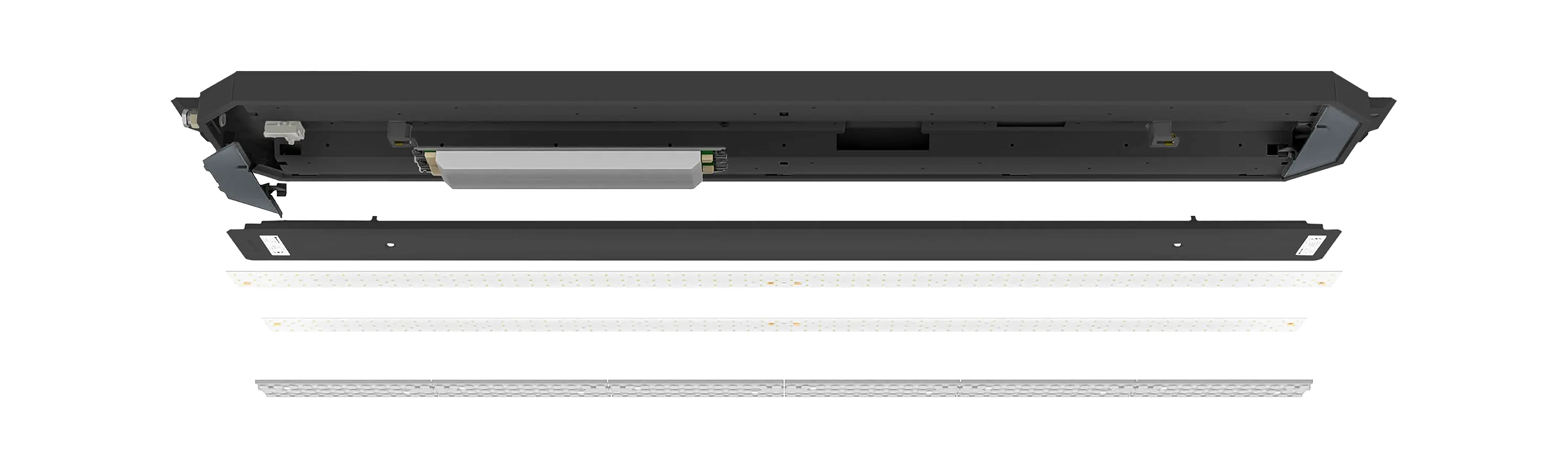

Visio construction

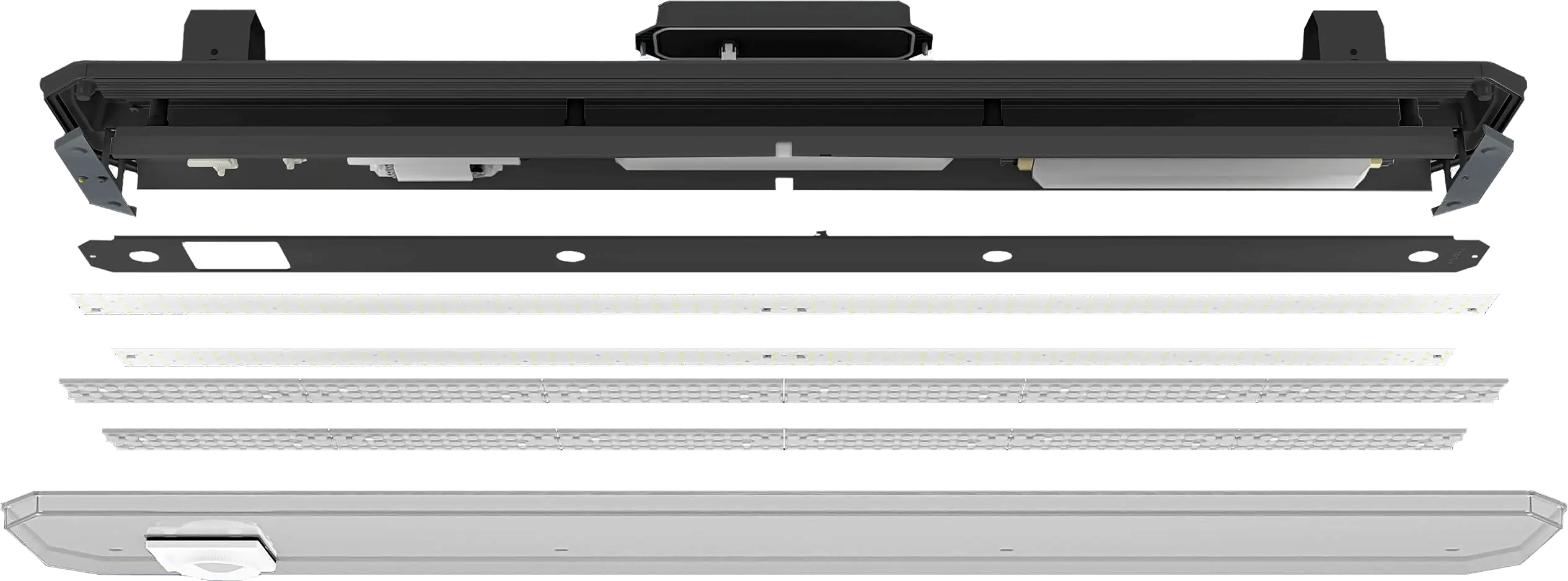

Visio PRO and Visio SPORT Construction
Light exactly where you want it.
Four distribution options.
The Visio family is available with four light distribution options, area broad, area medium, rack medium and rack narrow, offering a solution for a wide variety of applications.
Area broad
The area broad version produces a wide light distribution, ideal for large open areas where increased spacings can be utilised resulting in fewer luminaires needed.
16 x Visio 364W
Area broad
10 m mounting height
315 lux
0.646 u0
UGR 24
Figures are based on 0.80 maintenance factor
Area medium
The area medium is designed for use at higher mounting heights in open areas. The narrower distribution focuses the light down to the working plane so less light is wasted. The area medium is also ideal for applications where lower glare is required.
16 x Visio 364W
Area medium
16 m mounting height
312 lux
0.622 u0
UGR 20
Figures are based on 0.80 maintenance factor
Rack medium
The rack medium option is designed for wider aisles, lower mounting heights or where the preference is for more light on the rack face rather than the floor.
3 x Visio 141W
Rack medium
12 m mounting height
161 lux
0.538 u0
UGR 17
Figures are based on 0.80 maintenance factor
Rack narrow
The rack narrow option is designed for narrower aisles, higher mounting heights or where the preference is for more light on the floor rather than rack face.
3 x Visio 141W
Rack narrow
18 m mounting height
150 lux
0.627 u0
UGR 14
Figures are based on 0.80 maintenance factor
Find the right size for you.
Three size options.
The Visio range is available in 5 wattages spread across 3 product lengths, offering a solution for all mounting heights and light level applications.
The three lengths of 800 mm, 1400 mm and 2000 mm range in wattage from 113W up to 364W. By matching the size of the luminaire to the light output required, material usage is kept to a minimum which reduces cost and is beneficial to the environment.

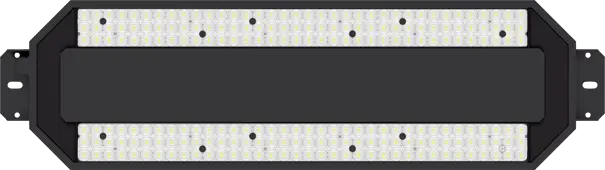

800 mm
113 W

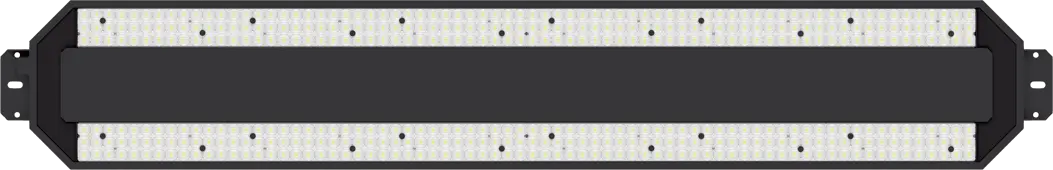

1400 mm
122 W / 141 W / 228 W

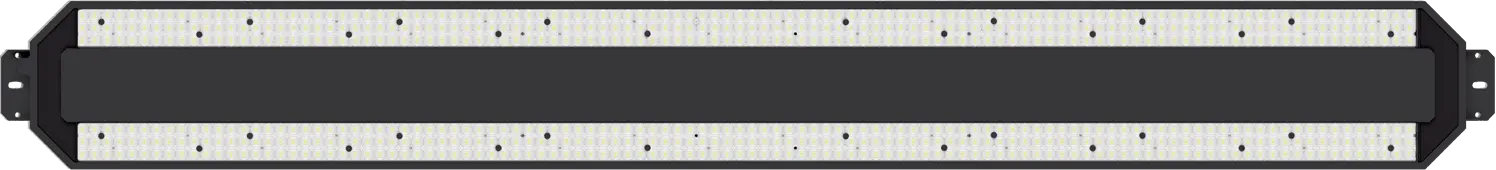

2000 mm
186 W / 268 W / 364 W
Take control of your lighting.
Lighting management & emergency monitoring.
SmartScan is a revolutionary wireless lighting management system that allows users to monitor their energy performance data and complete operational information for all SmartScan standard and emergency luminaires.
The High Level Smart Sensor is optimised for mounting heights up to 18m. An adjustable lens allows for the detection area to be tuned to suit the application perfectly. The use of advanced Thorlux Smart technology ensures LEDs are only powered when required and when on are optimised to provide the correct light level and corresponding power demand. Settings can be configured from ground level using the Smart Programmer.
More DetailsHigh level lighting, low carbon footprint.
The Visio has been designed to ensure minimal environmental impact throughout the lifetime of the luminaires.
Efficient Light Distributions
High performance optics place light where it is needed, avoiding wasted lumens and therefore power.
Easy Serviceability
All components are replaceable on site, the Visio range has been designed to allow upgrade or rectification of the LED PCBs, driver and other components, extending the lifetime of the product and making upgrading to more efficient LEDs in the future possible.
Recyclable at End of Life
The Visio family has been designed to achieve a long and reliable lifetime. This can be extended further by easy serviceability. However once end of life is reached, Visio luminaires can be fully disassembled for easy recycling, minimising the impact on the environment.
Minimised Material Usage
The Visio family has a compact body design whilst still retaining the performance of a typically much larger luminaire; thus reducing the quantity of LEDs, components and material required.

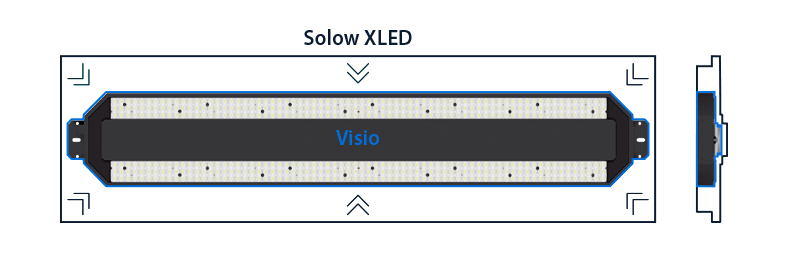

Material Usage Comparison
Visio 1,400 mm vs Solow XLED Quadline
40 %
Reduction in metalwork
64 %
Reduction in PCBs
Figures are based on material weight
